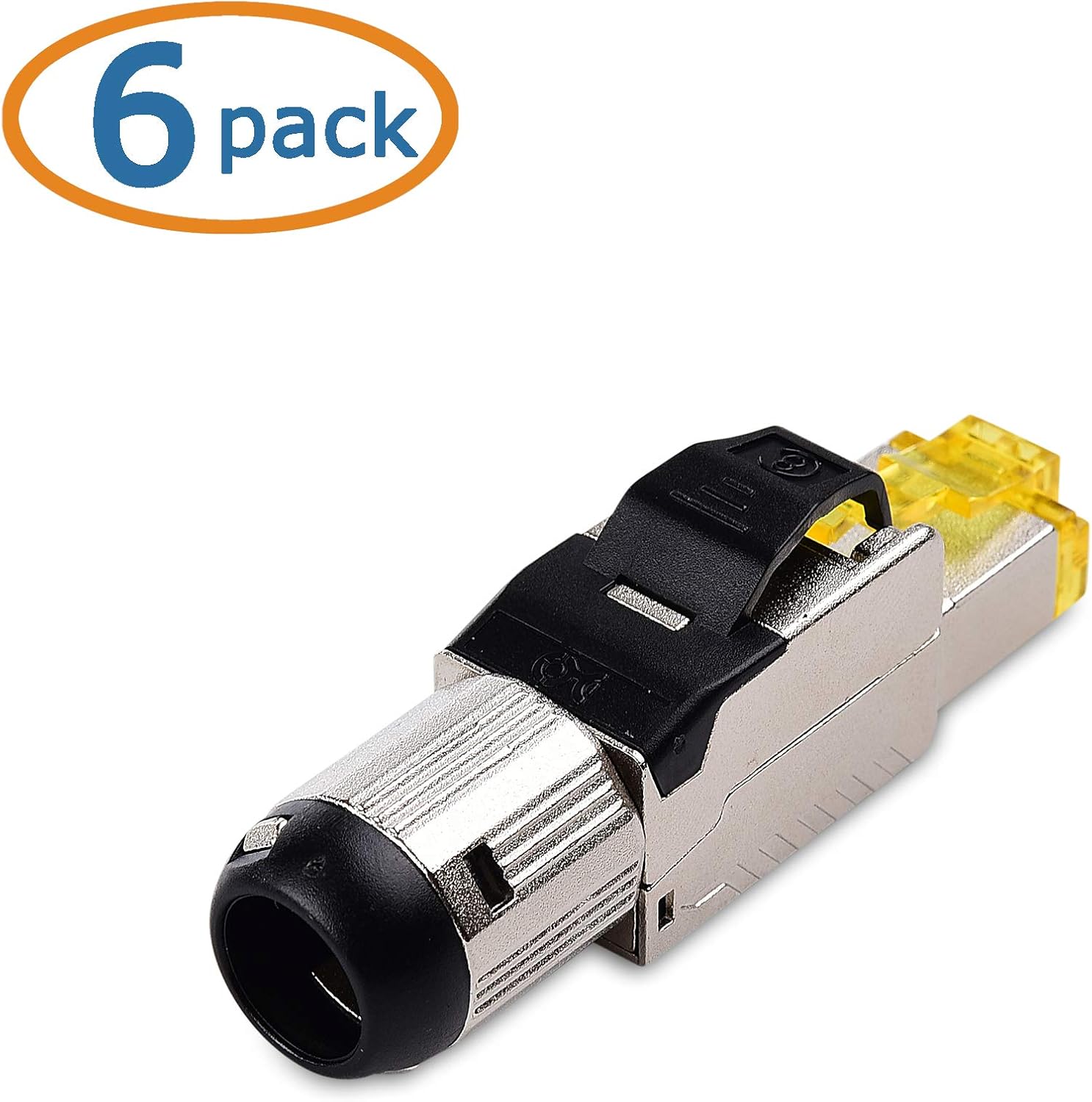

6-Pack Shielded Cat8 RJ45 Connector V30545
Sale price
$13.50
Regular price $58.34
Skip to product information
Full metal jacket RJ45 field plug for Cat 8 channel network switch and server connections; Modular plugs with robust die-cast housing provides superior shielding and mitigates alien crosstalk on a Cat 8 Ethernet cable; Supports 22 AWG to 24 AWG Shielded Cat8 wire with an outside diameter between 7.0 and 8.5mm; Backwards compatible as Cat 6A, or Cat 7 connector
Cat8 performance for a 10GBASE-T, 25GBASE-T or even a 40GBASE-T channel compliant network up to 30 meters; GHMT Cat 8 channel performance verified; Fully backwards compatible with Cat 6 (Cat6), Cat 6A (Cat6A), Cat 7 (Cat7A) Ethernet networks
Impact tool free RJ45 connector with an open hinged design simplifies placement and termination of bulky Shielded cable; IDC modules can be wired for T568A or T568B wiring with a color-coded pass through termination cap
Superior construction combines a one piece metal housing with an integrated silencing cylinder to suppress EMI, NEXT, and AXT electromagnetic noise and crosstalk; A screw-on metal strain-relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover protects the RJ45 contacts when transporting or storing a terminated cable
PoE plus compliant with IEEE 802.3at Power over Ethernet (PoE+) applications; Terminate a Cat8 Ethernet cable with support for Cat 8 auto-negotiation in a mixed network with variable data transfer speeds to a 1 GB switch, 10 GB switch or 40 GB switch
Electronics Computers & Accessories Computer Accessories & Peripherals
6-Pack Shielded Cat8 RJ45 Connector V30545
Sale price
$13.50
Regular price $58.34
Shipping calculated at checkout.

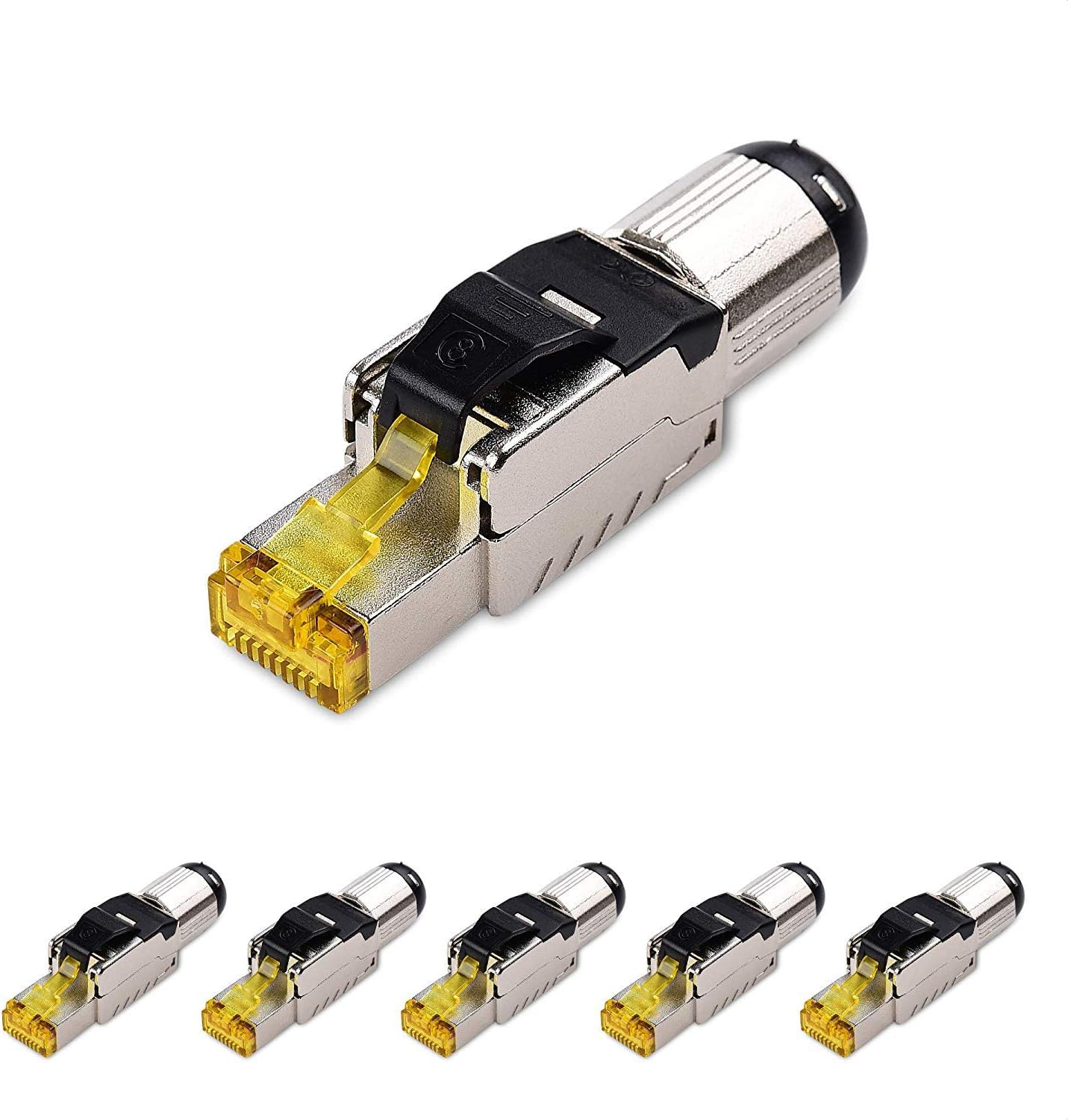

Full metal jacket RJ45 field plug for Cat 8 channel network switch and server connections; Modular plugs with robust die-cast housing provides superior shielding and mitigates alien crosstalk on a Cat 8 Ethernet cable; Supports 22 AWG to 24 AWG Shielded Cat8 wire with an outside diameter between 7.0 and 8.5mm; Backwards compatible as Cat 6A, or Cat 7 connector

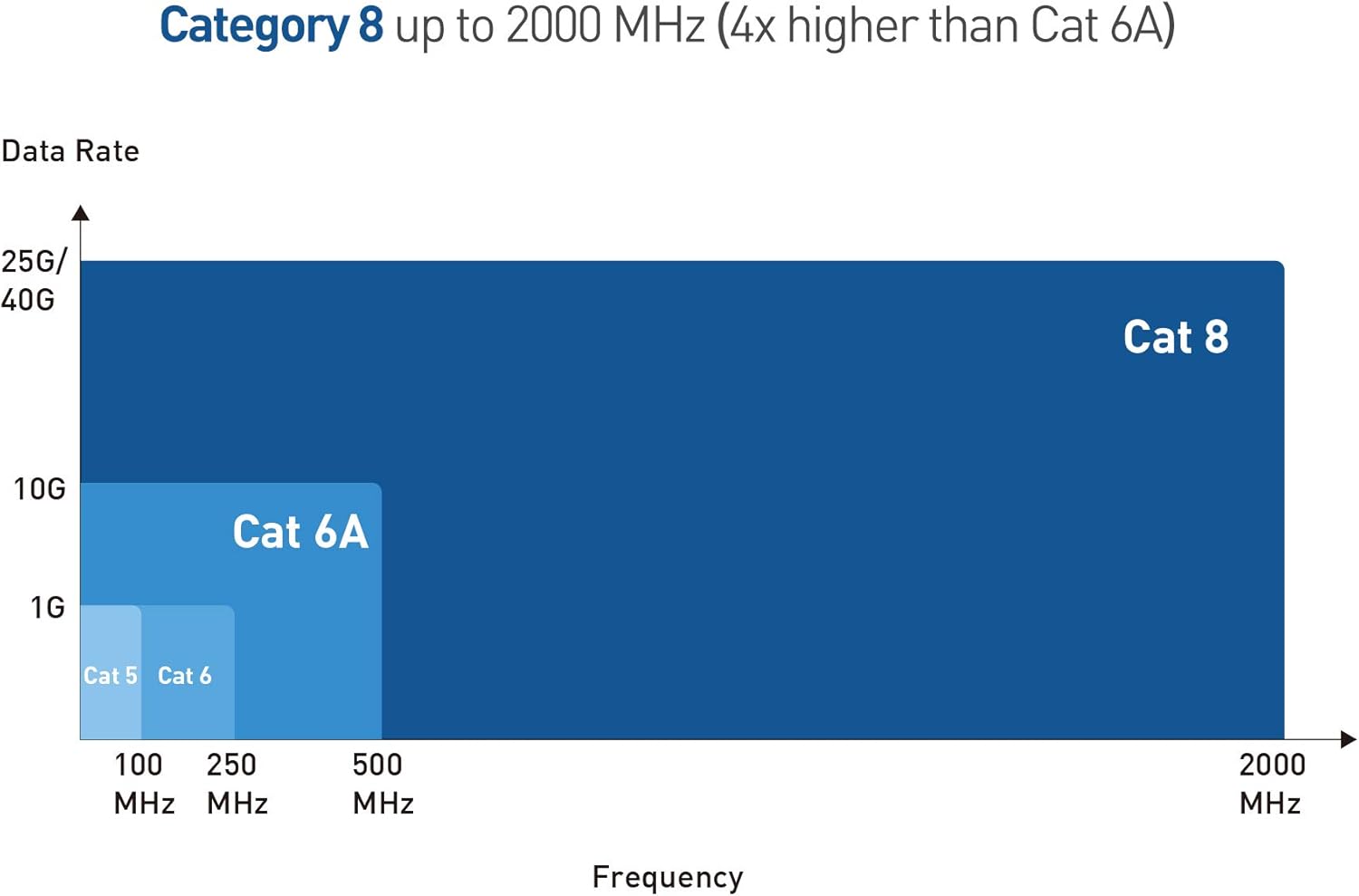

Cat8 performance for a 10GBASE-T, 25GBASE-T or even a 40GBASE-T channel compliant network up to 30 meters; GHMT Cat 8 channel performance verified; Fully backwards compatible with Cat 6 (Cat6), Cat 6A (Cat6A), Cat 7 (Cat7A) Ethernet networks

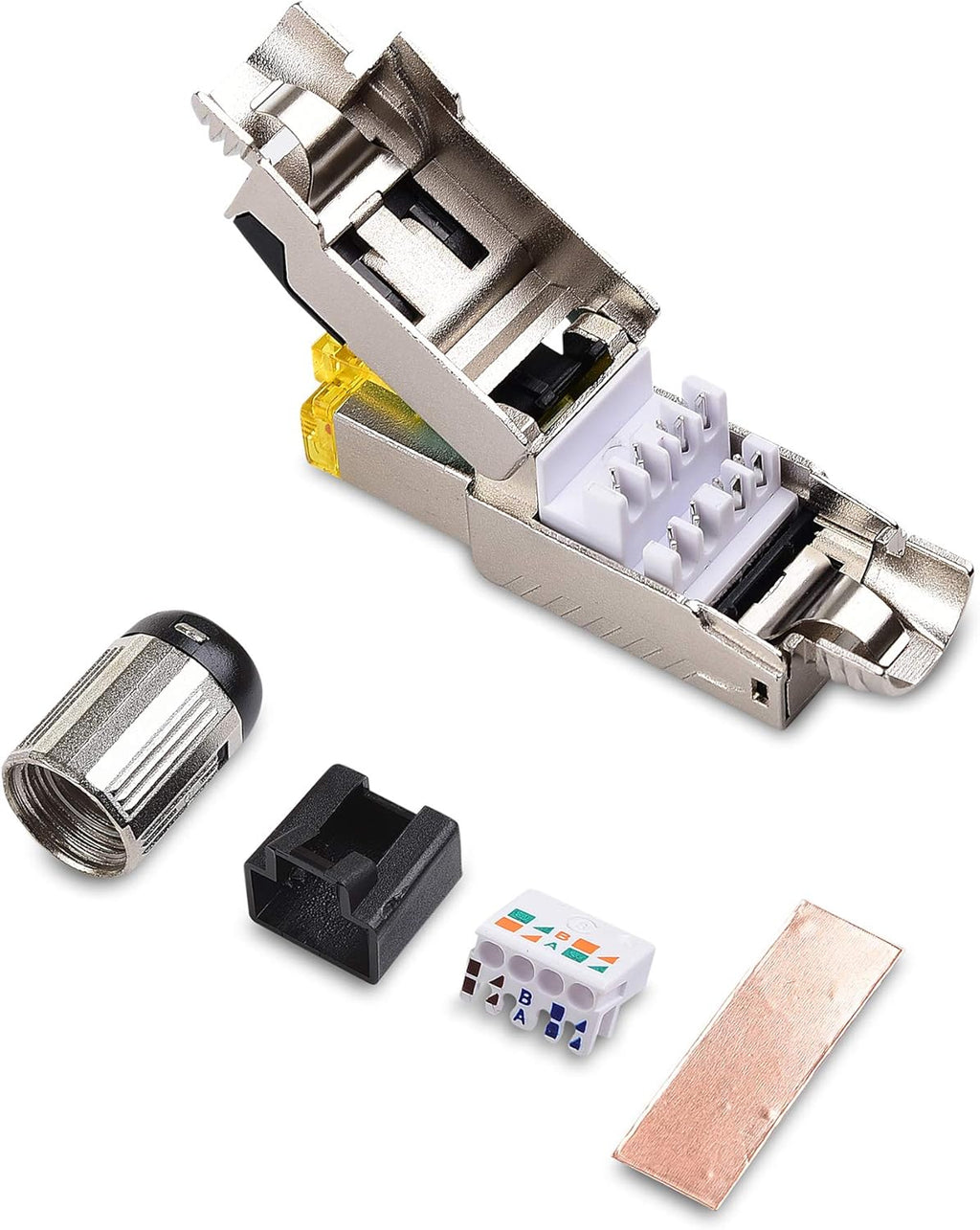

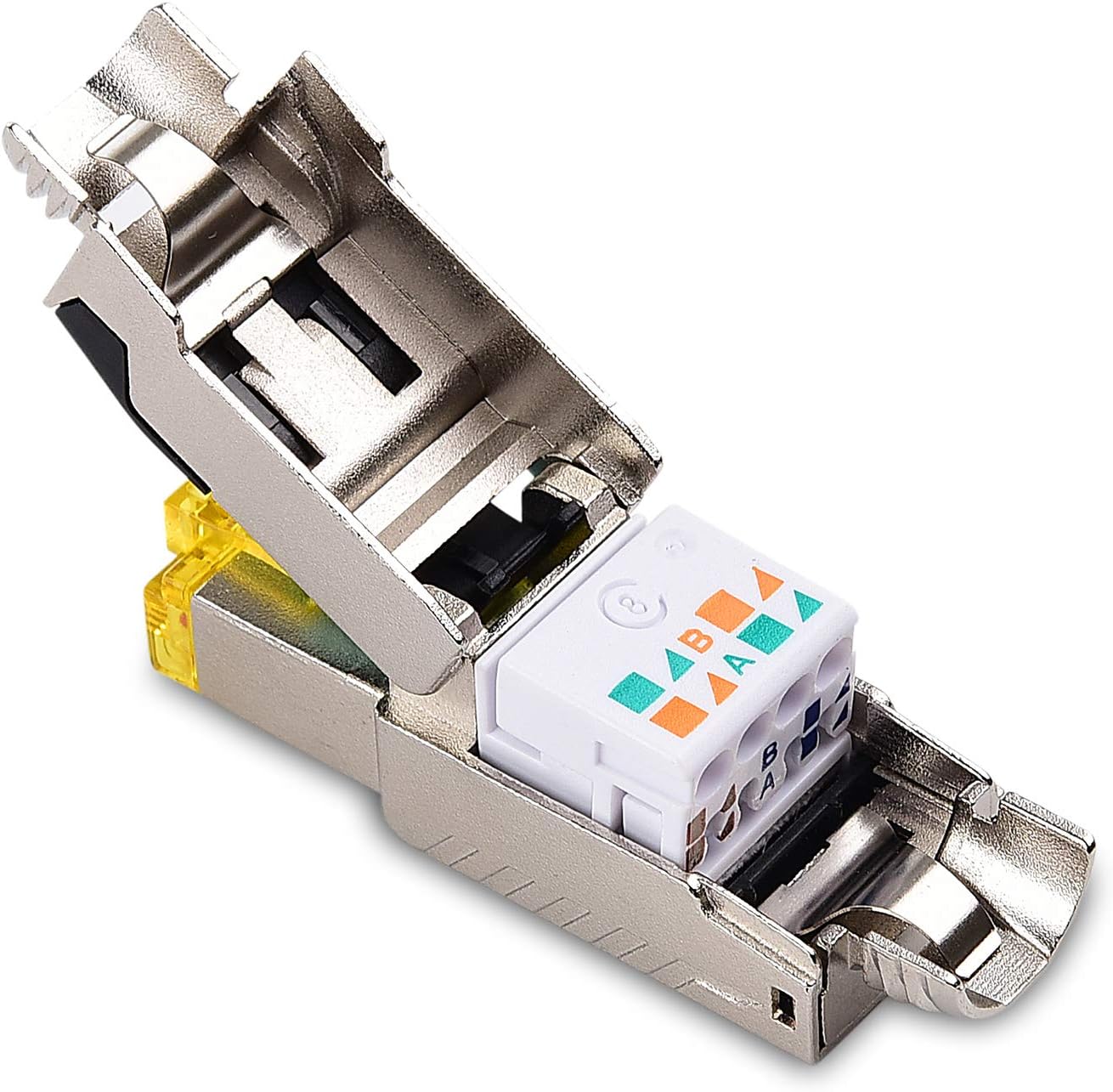

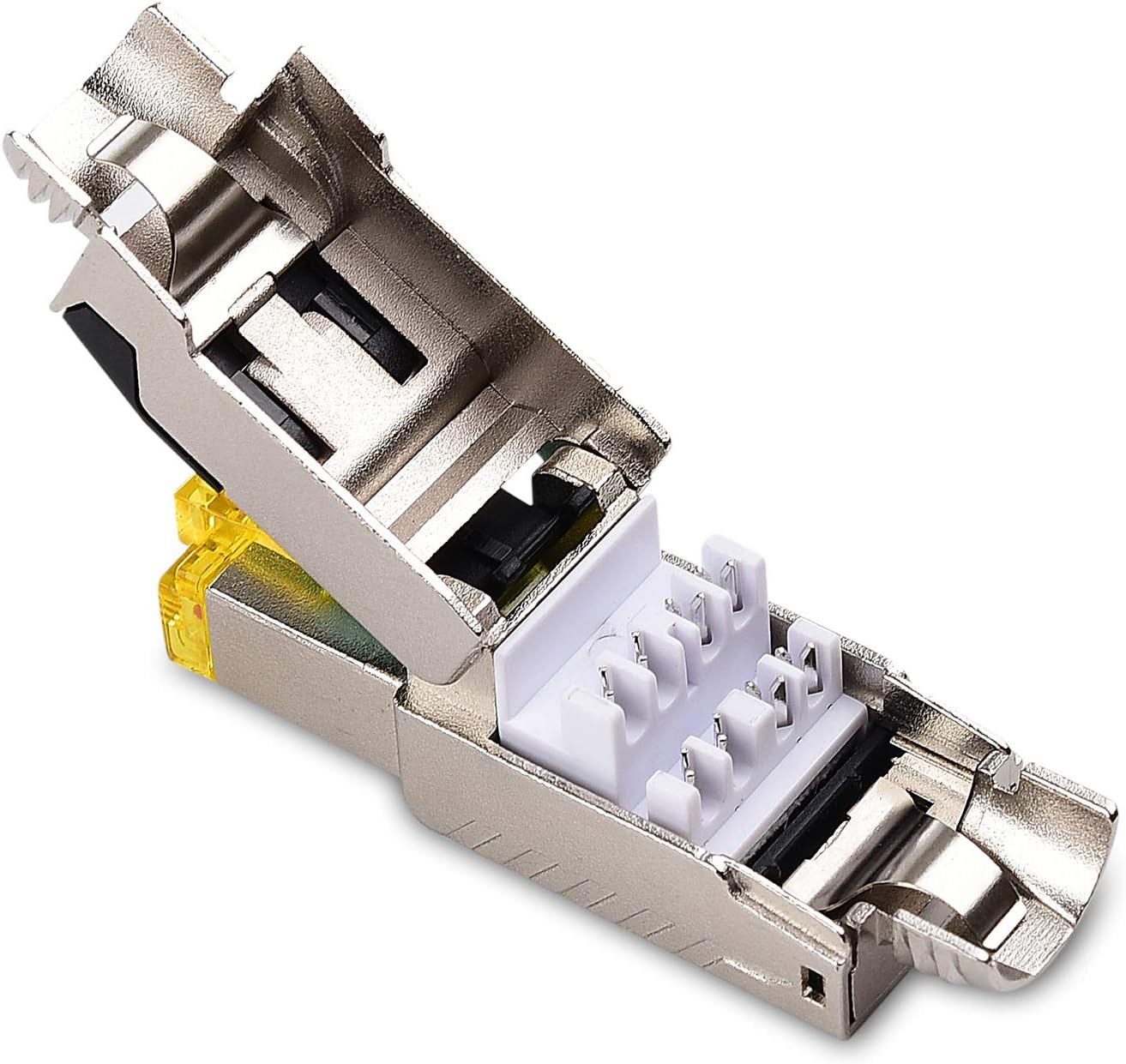

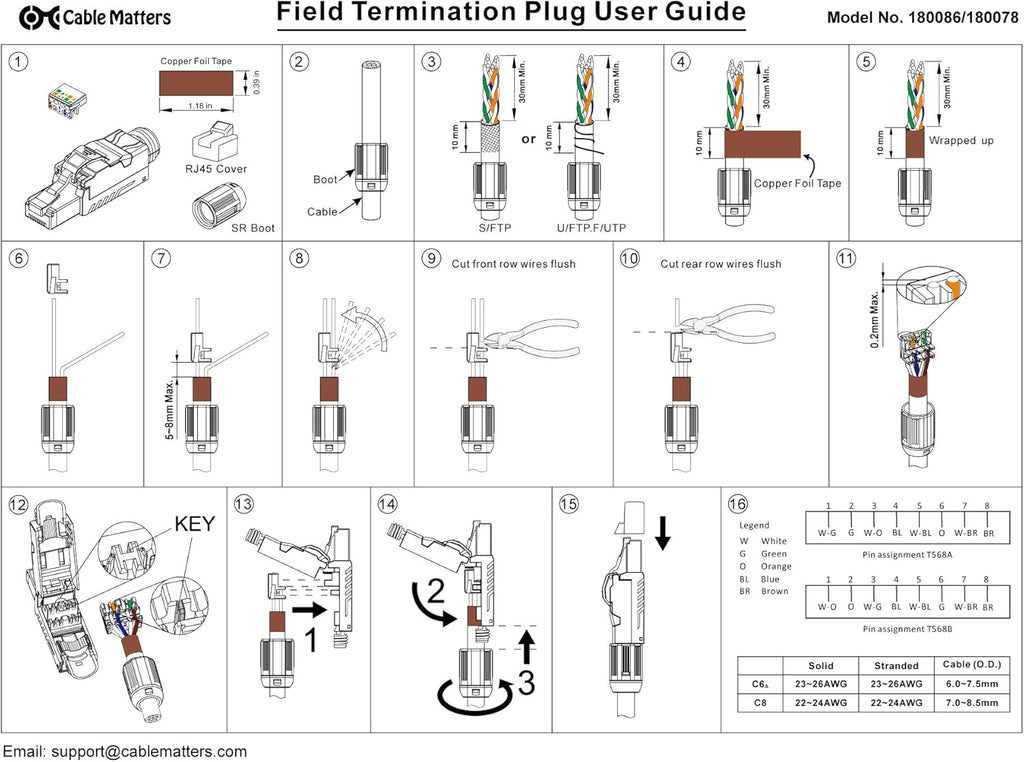

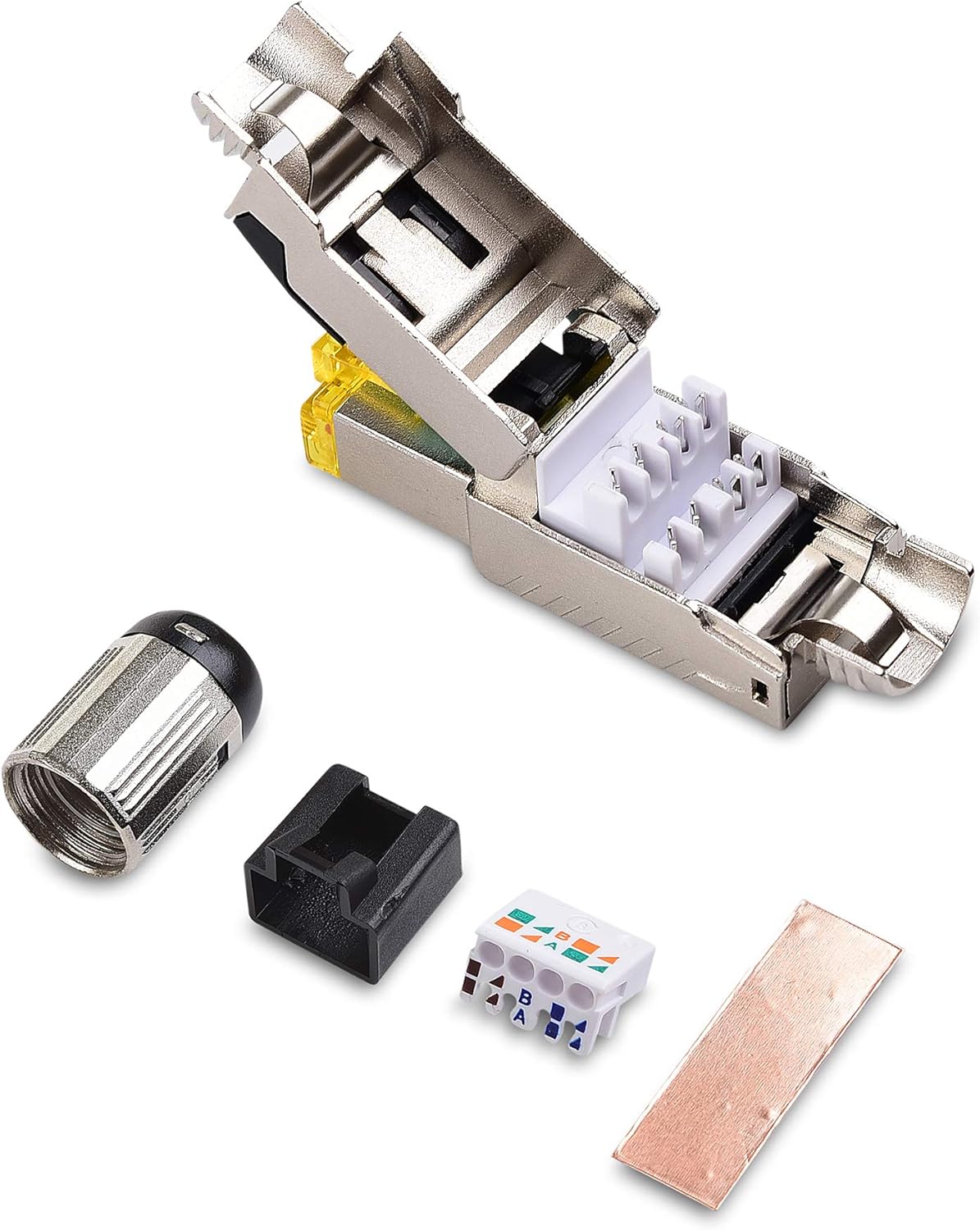

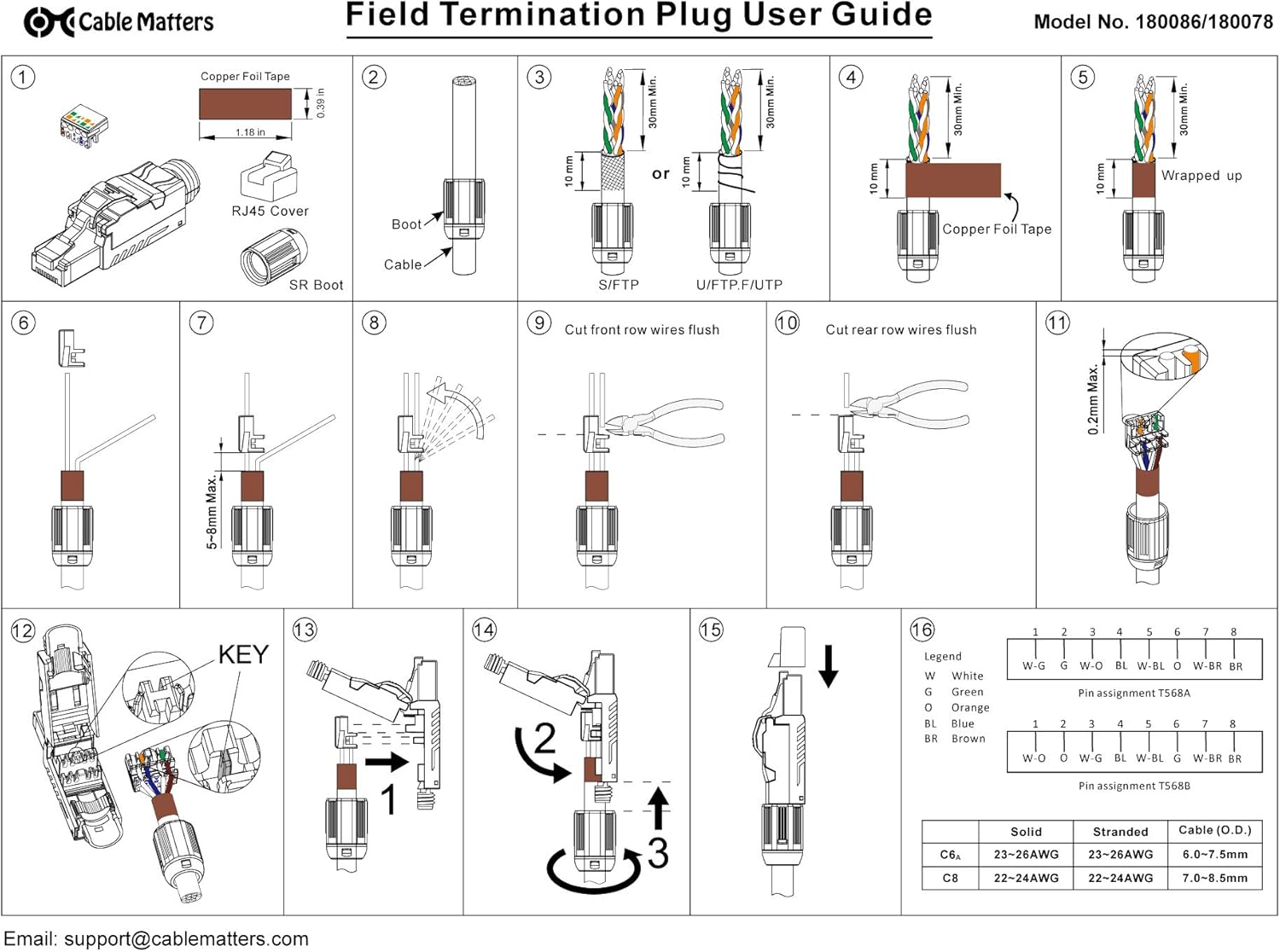

Impact tool free RJ45 connector with an open hinged design simplifies placement and termination of bulky Shielded cable; IDC modules can be wired for T568A or T568B wiring with a color-coded pass through termination cap
Superior construction combines a one piece metal housing with an integrated silencing cylinder to suppress EMI, NEXT, and AXT electromagnetic noise and crosstalk; A screw-on metal strain-relief boot protects the cable integrity and increases the shielding performance; An IP20 rated dust cover protects the RJ45 contacts when transporting or storing a terminated cable
PoE plus compliant with IEEE 802.3at Power over Ethernet (PoE+) applications; Terminate a Cat8 Ethernet cable with support for Cat 8 auto-negotiation in a mixed network with variable data transfer speeds to a 1 GB switch, 10 GB switch or 40 GB switch
| Cat 8 Shielded Field Termination Plug | Cat 8 Shielded Metal Keystone Jacks | Cat 8 Shielded Keystone Jack | Cat 8 S/FTP RJ45 Ethernet Patch Cable | |
|---|---|---|---|---|
| Category Rating | Cat 8 (Backwards Compatible) | Cat 8 | Cat 8 (Backwards Compatible) | Cat 8 (Backwards Compatible) |
| Termination Type | Tool-less | n/a | Impact or Crimp Tool | n/a |
| Available Sizes | 6-Pack | 1-Pack | 5-Pack | 3, 5, 10, 25 ft |
| Model No | 180078 | 180088 | 180079 | 160041 |
